Fahrzeugbewegungssensor für intelligentes Straßenlaternensteuerungssystem

Je nach Straßen-/Tunnelumgebung, kooperiert es mit der intelligenten zentralen Beleuchtungssteuerung, um die Beleuchtungsstärke der Lampen automatisch entsprechend der Änderung der Umgebungshelligkeit zu steuern,, um den Zweck der intelligenten Verwaltung und Steuerung zu erreichen.

According to the real time traffic flow rate conditions, it cooperates with the intelligent lighting centralized controller to automatically control the illuminance of the roadway lights according to the changing of city roads brightness, to achieve the purpose of intelligent public lighting management.

Key Features n Applicable to signal control systems, traffic information service systems, road traffic monitoring and other application scenarios. n High precision millimeter wave radar with 4 million low illumination camera. n Max. 8 lanes of multi-target motor vehicles detection, longitudinal distance of 100m. n High spatial resolution and strong penetration ability, support working in all-weather environment, not affected by rain, fog, strong wind, dust, light, etc. n Built-in deep learning algorithm, support intelligent recognition function, support license plate recognition and target fully structured. n Supports detection of multiple targets’ position, lane, speed, direction and other info. n It supports lane statistics, traffic flow, speed, status, queue, time distance, spacing, Qty.of parking areas, avg.delay, space occupancy and time occupancy data, and supports statistical upload from 1 to 3600 seconds. n Supports traffic evaluation data output, including congestion, queue length, etc. n Each lane supports 2 virtual coils to output vehicle entry and exit signals, the virtual coil positions are configurable. n Fog penetration, strong light suppression, wide dynamic range, and has multiple white balance modes to suit various scene requirements. n Support Network & RS-485 data upload. Parameters Millimeter Wave Radar Target Type People / Motor Vehicles / Non-Motor Vehicles Max. Qty. of Detection 128 Working Frequency 80 ~ 81GHz Transmit power 12dBm(RFout)+18dB(ANTgain) Speed Detect Range -250 km/h ~ 250 km/h Detection Mode Doppler moving target detection, slow moving target detection, fast moving target detection Sweep bandwidth 136.5 MHz Modulation Waveform FMCW Max. Detection Distance 150m@0° ;    50m@士45° Horizontal angle measurement range 士45° Horizontal lobe 90° for MRR, 22° for  LRR Vertical Lobe 13°(-6dB) Refresh rate 12.5Hz Install Height 1~ 6m   Interface Serial Port 1 of RS-485 Port Snapshot Function Image Format JPEG Image resolution 2688 × 1520 Smart Functions Intelligent recognition Bayonet capture, license plate recognition, vehicle model recognition, vehicle body color recognition, brand, sub-brand. Exterior Interface Ethernet 2pcs RJ45 100 M / 1000 M Adaptive Ethernet port  Warning 1 Relay switch Function Features Min.illumination Colorful: 0.01 Lux @ (F1.2，AGC ON) Black & White: 0.001 Lux @ (F1.2，AGC ON) shutter 1/25s ~ 1/100,000s Video compression standards H.264, H.265, MJPEG Compression output bit rate 32 Kbps ~ 16 Mbps Video resolution 2688 × 1520 Frame rate 25 fps (2688 × 1520) Image Settings Saturation, brightness, contrast, white balance, gain adjustable through software Storage function TF General functions Heartbeat, password protection, NTP time synchronization Video format PAL General Specifications Dimmensions 226 mm (W) x 375.3 mm (H) x 206.4 mm (D) Working Temperature -30 °C ~ +70 °C Working Humidity 5% ~ 95% @ 40 °C，No condensation Working Voltage DC 24 V ± 10% Power Consumption 25 W Max. N.W. 3 kg ICR Type Infrared IP Rating IP67 Focal Length 12 mm Resolution 2688 × 1520 White Balance Automatic white balance Wide dynamic range Support Max. Energy Optimization achieving by the Smart Traffic Radar  and Video all-in-one Detecting Machine

Die zentralisierte Steuerung ist weit verbreitet in Smart-City-Straßenbeleuchtungsprojekten ,, der Beleuchtung von Autobahnen ,, der Tunnelbeleuchtung und der Industriebeleuchtung, wie z Mensch-Maschine-Schnittstelle, Datenerfassung und Lampenüberwachung.

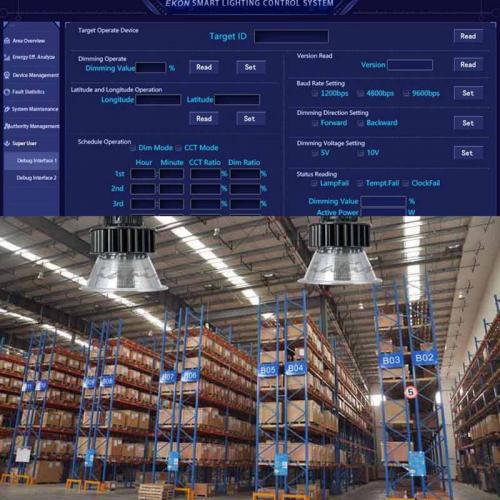

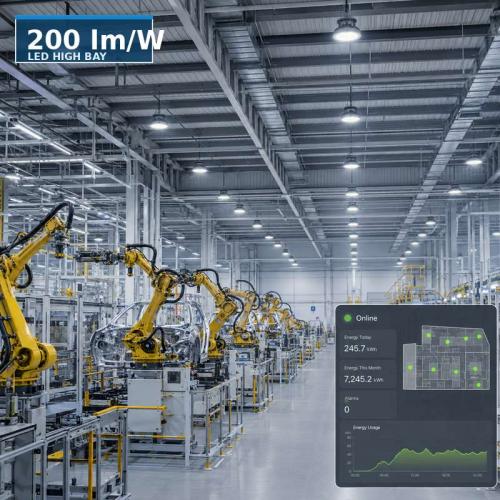

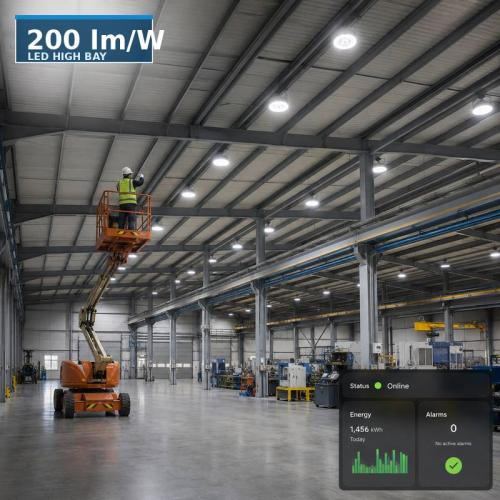

Der digitale Steuerungsmodus des intelligenten Beleuchtungssteuerungssystems der Industrie wird immer beliebter im Beleuchtungsmanagementsystem der IoT-Industrie,, das die hochmoderne Lösung, zum sofortigen präzisen Dimmen der Beleuchtungshelligkeit auf 100% anwendet, um dies zu erkennen Präsenz menschlicher Körper, nicht nur anhand der, Tageslichtintensität erkennen Sensoren, Infrarotsensoren, Bewegungssensoren zu erkennen Förderband und Gabelstapler bewegen,, sondern auch den Notfall über die lokale Schnittstelle handhaben: Tasten auf dem Gerät oder industriellen Touchscreen, Handheld-Geräte, und Überholungsschalter für die Sicherheitsplanung.

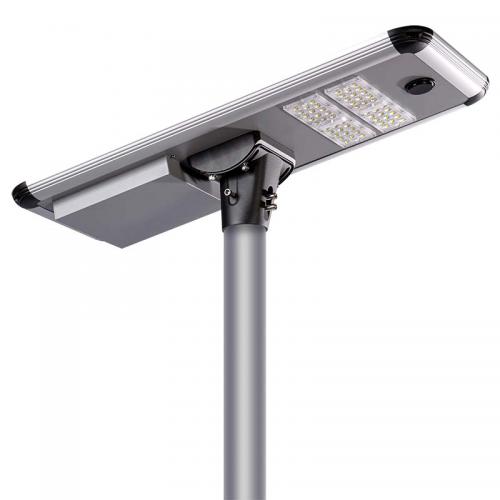

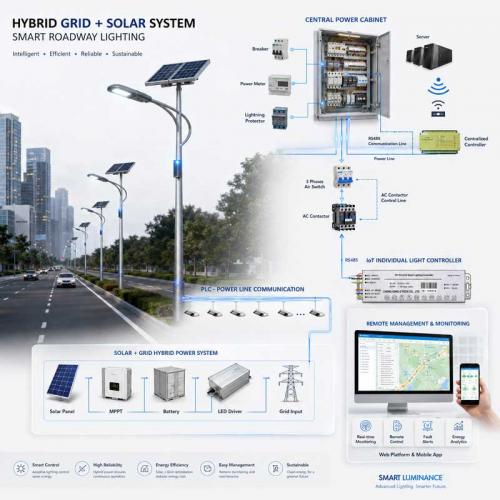

Key Features: Hybrid AC & Solar Power or Pure Solar Power 4G Sim Card CAT 1 Communication Technology (Hybrid PLC / LoRa  /LoRaMesh) Auto-change Solar to AC by Smart Detect Sensor within 3 seconds Cloud based IoT Lighting Controlling & Monitoring Real Time Data: Watts / Voltage / Current / Power Factor can be Remote Reading Power Consumption / Faulty Reporting Using high efficiency 5050 leds,more than 200lm/w. Adopting high efficiency monocrystalline silicon solar panel, conversion rate is more than 21%. Grade A LiFePo4 battery,capacity is more than 80% after 2000 cycles. PWM and MPPT solar charger Horizontal or vertical pole installation,mounted angle is adjustable

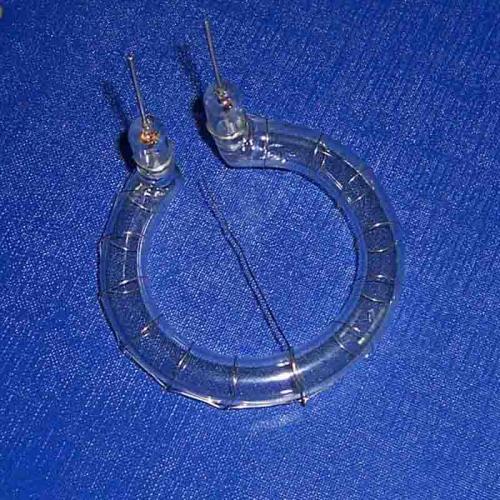

World-class industrial design and manufacturing capabilities enable us to produce top-quality xenon flash tubes in multiple shapes—including linear, U-shaped, spiral, and circular designs. Our tubes are engineered for a wide range of high-demand applications, including stroboscopic instruments, warning beacon lights, traffic-violation sensor cameras, professional photography, high-speed photography, graphic arts, airport runway lighting, solar simulation (providing high-intensity light that matches natural sunlight), air and water sterilization systems, IPL hair-removal devices, skin-treatment and freckle-removal equipment, medical devices, laser pumping, color-measurement systems, and high-precision laser-pulse xenon lamps for beauty applications. Our xenon flash tubes are also widely used in stage stroboscopic lighting and stroboscopic screens, police vehicle warning lights, emergency flashing beacons, signaling systems, speed-measurement equipment, timing systems, and many other industrial and safety applications. We proudly supply thousands of customers worldwide, including professional lighting manufacturers, research institutes and laboratories, universities, and global wholesalers and retailers. We provide a complete product series covering multiple shapes, dimensions, trigger-control types, and warning-beacon specifications—along with full supporting components such as trigger coils, transformers, capacitors, and necessary accessories.

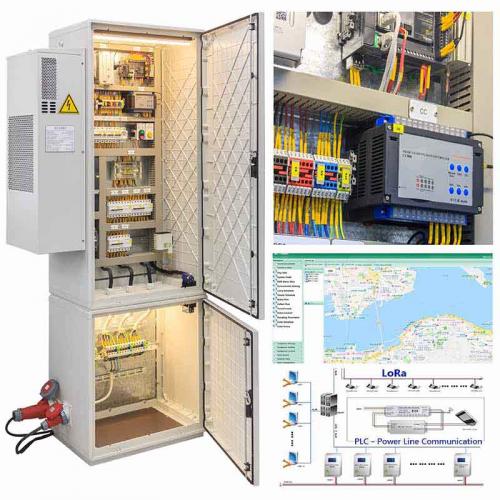

intelligentes Kabinett ist eine Schlüsselsteuerungslösung für die LED-Straßenbeleuchtungsprojekte von Smart City. es wird gleichzeitig das Netz und die Straßenbeleuchtung synchron steuern und überwachen, weitreichende Verknüpfung mit Geräten von Drittanbietern wie Energiezählern, Drehstromsensor, Überspannungsschutz, Beleuchtungsstärkesensor, und Bewegungssensor usw.. Sie können alle Straßenbeleuchtungsschränke in jedem Teil der Welt überwachen und steuern, solange es Internet gibt. Durch die Verbindung mit dem Bewegungssensor und dem Sensor zur Erkennung der Tageslichtintensität, wird es eine perfekte und nahtlose Lösung für das intelligente Lichtsteuerungsmanagementsystem für das effektive Energieanlagenmanagement in Stadtstraßen,Schnellstraßen,Tunneln,Lagern bieten , Fabriken, Gebäude, Umspannwerke,Flughäfen Beleuchtungsprojekte. die Sensorverknüpfungsoptionen von Drittanbietern. Schlüsselelement der zentralen Steuerung PDF-Datei kann sein FOLGENDES herunterladen:
